Position the collar
Place Fendix against the penetration with the cutting-plate stop ends beyond the opening.
Slimline fire collar for retrofit applications
Patent pendingTHE FENDIX COLLAR

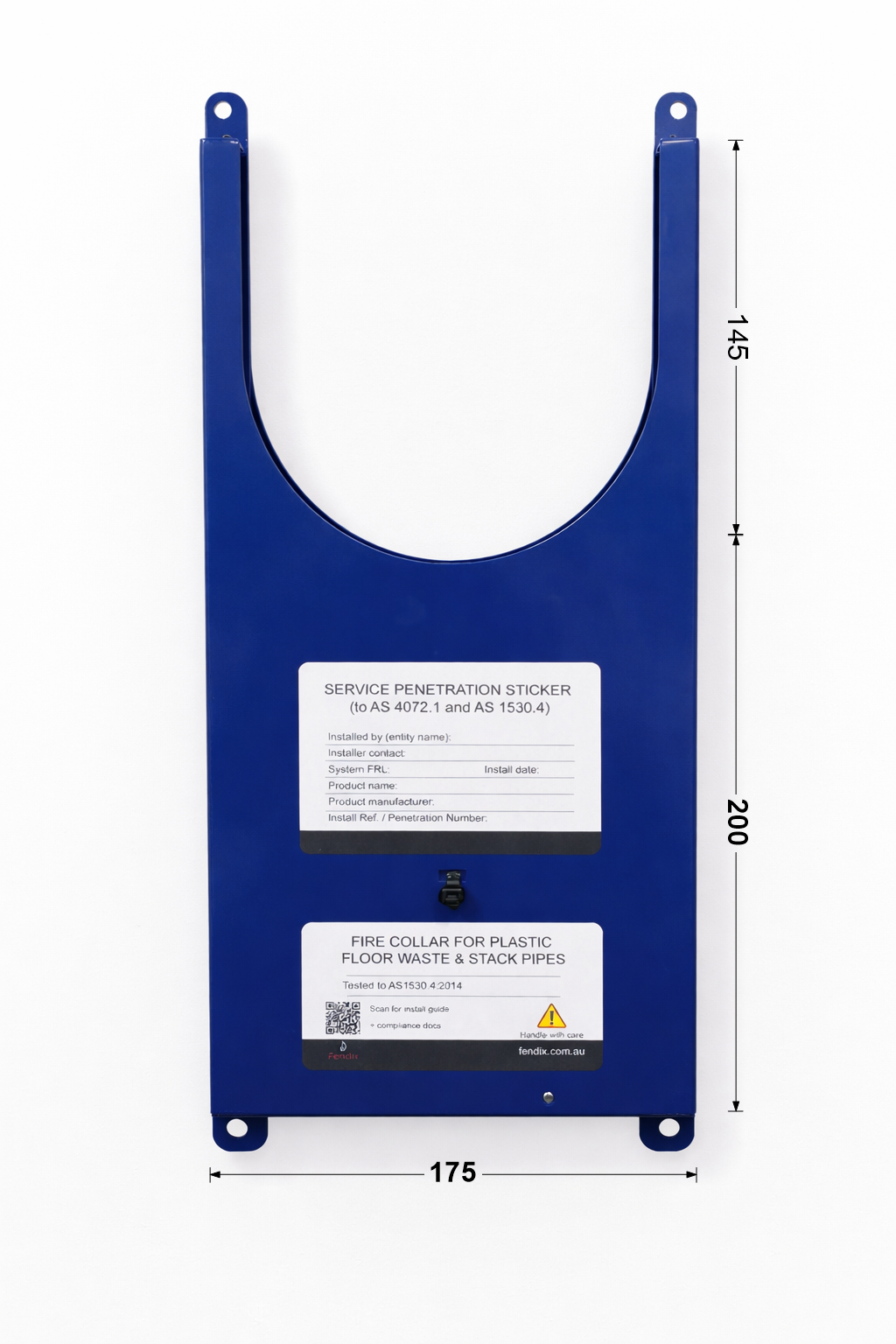

No room to go full circle? Fit Fendix.Just 20 mm thick, with an open U-shape that fits from one accessible side, without fully encircling the pipe. For stack, floor waste, shower and vent applications, subject to Assessment RTL FA 2981.03.
20 mm thickFire collar profile
50–100 mmOne collar, four PVC-U sizes
Up to 4 hoursFire tested to AS1530.4:2014
RTL FA 2981.03NATA laboratory report
Available from
Buy Fendix your way.
Order direct or through our distributors.
Why installers choose Fendix
A slimline fire collar for standard installs and difficult penetrations.
- Install over an existing cast-in collar or a standard core hole.
- Fit the open U-shape from one accessible side, without needing the collar to fully encircle the pipe.

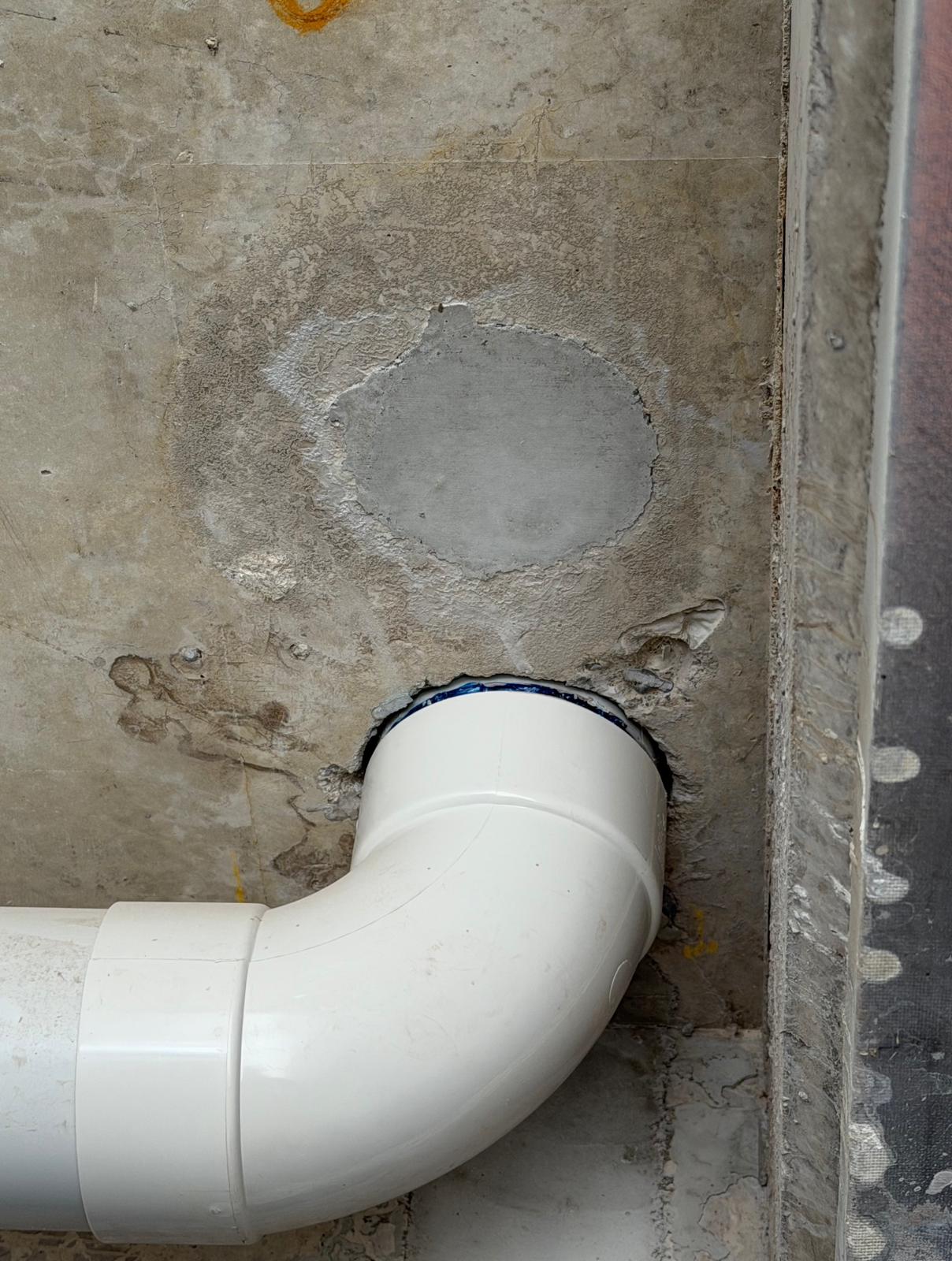

- Designed for tight-clearance installations, including pipes positioned as close as 15 mm to a beam.
- Compliant for sockets, elbows, S-bends, four-way risers and other PVC-U DWV fittings.
- Avoid fire-rated bulkheads and box-outs in tested configurations.

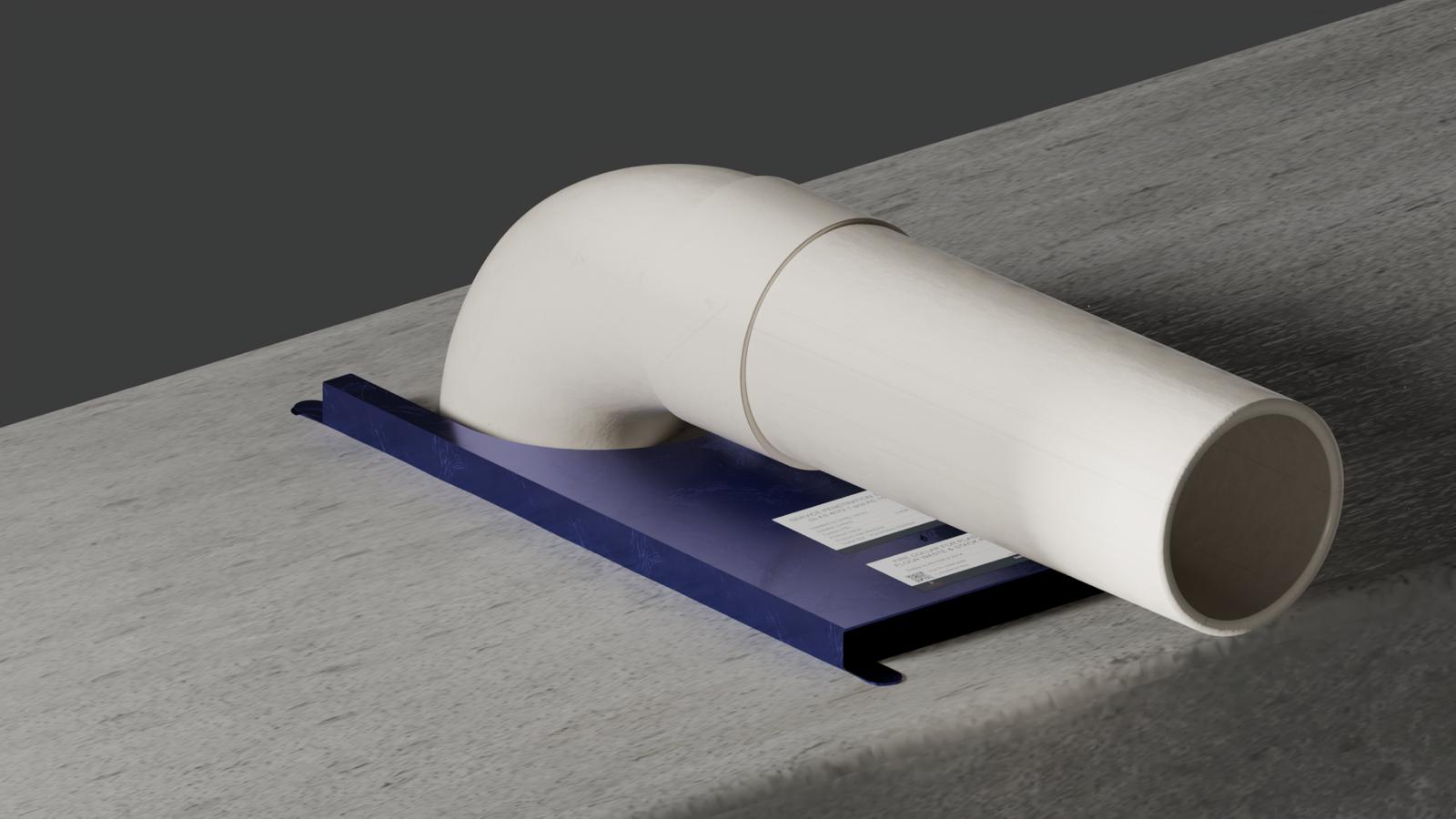

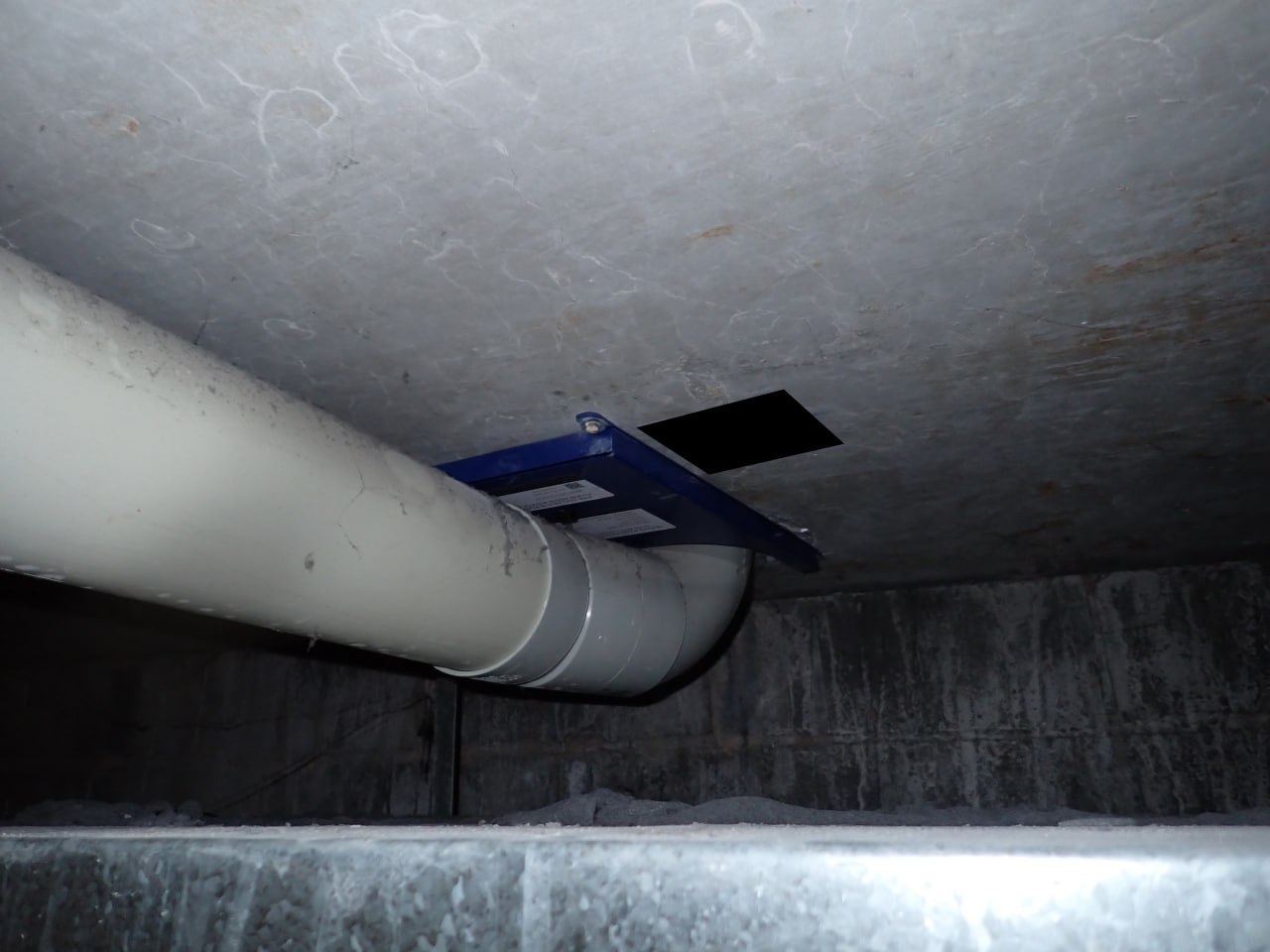

- Fits where pipes elbow straight out of the penetration and run close to the underside of the slab.
Always refer to Assessment RTL FA 2981.03 for complete tested configurations and installation requirements.
A different approach. By design.
Why build a bulkhead or alter pipework just to make a collar fit?

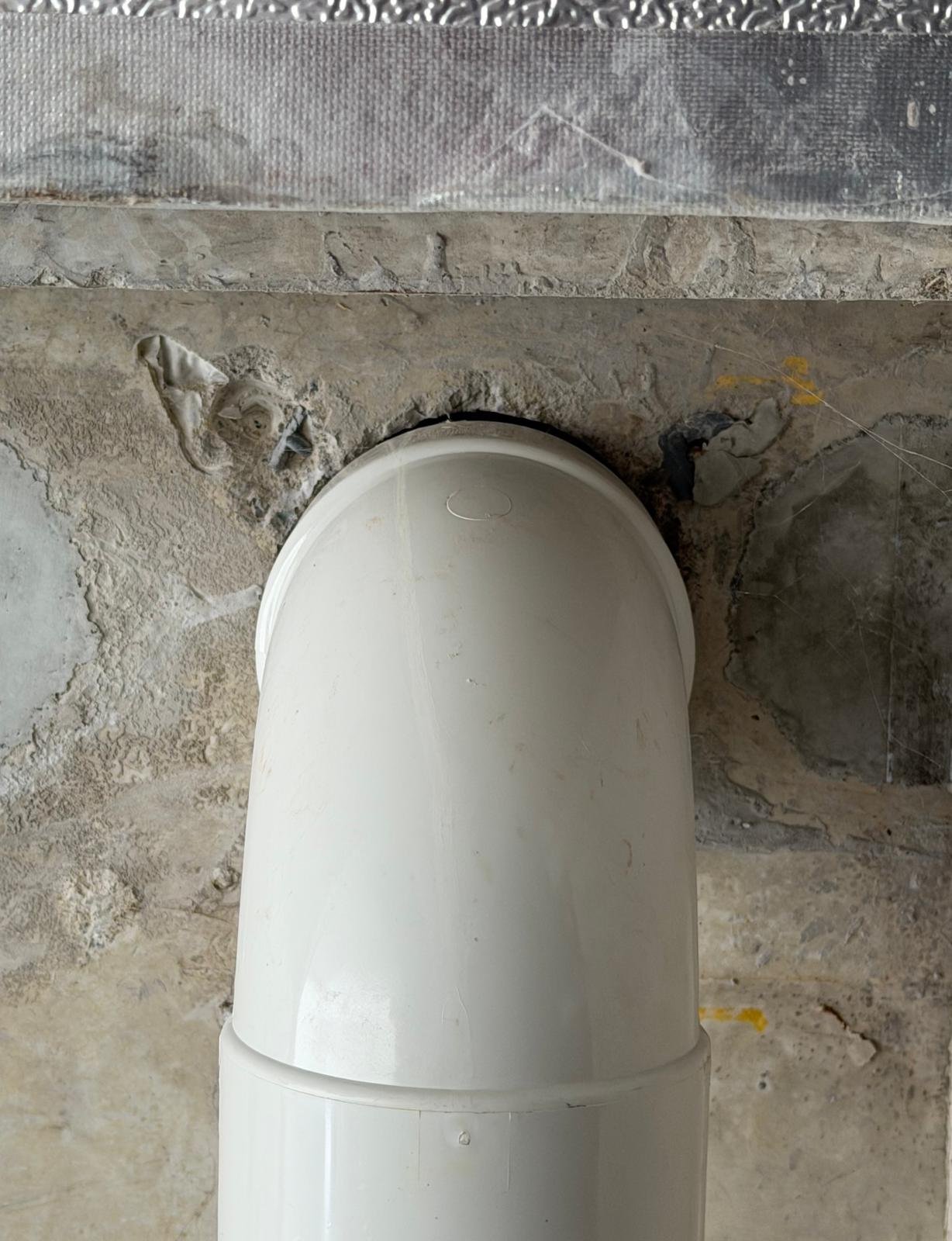

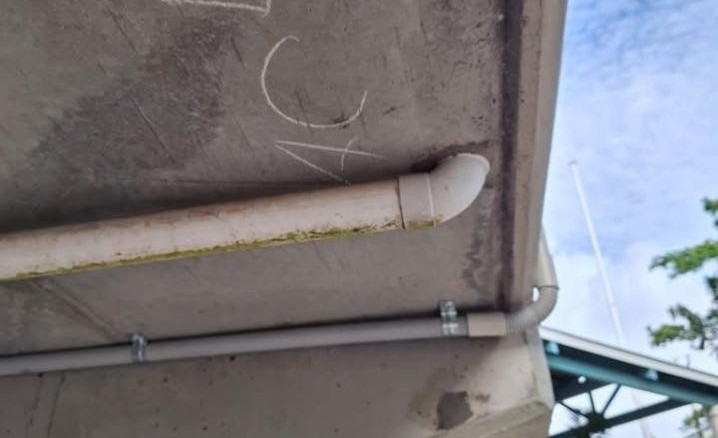

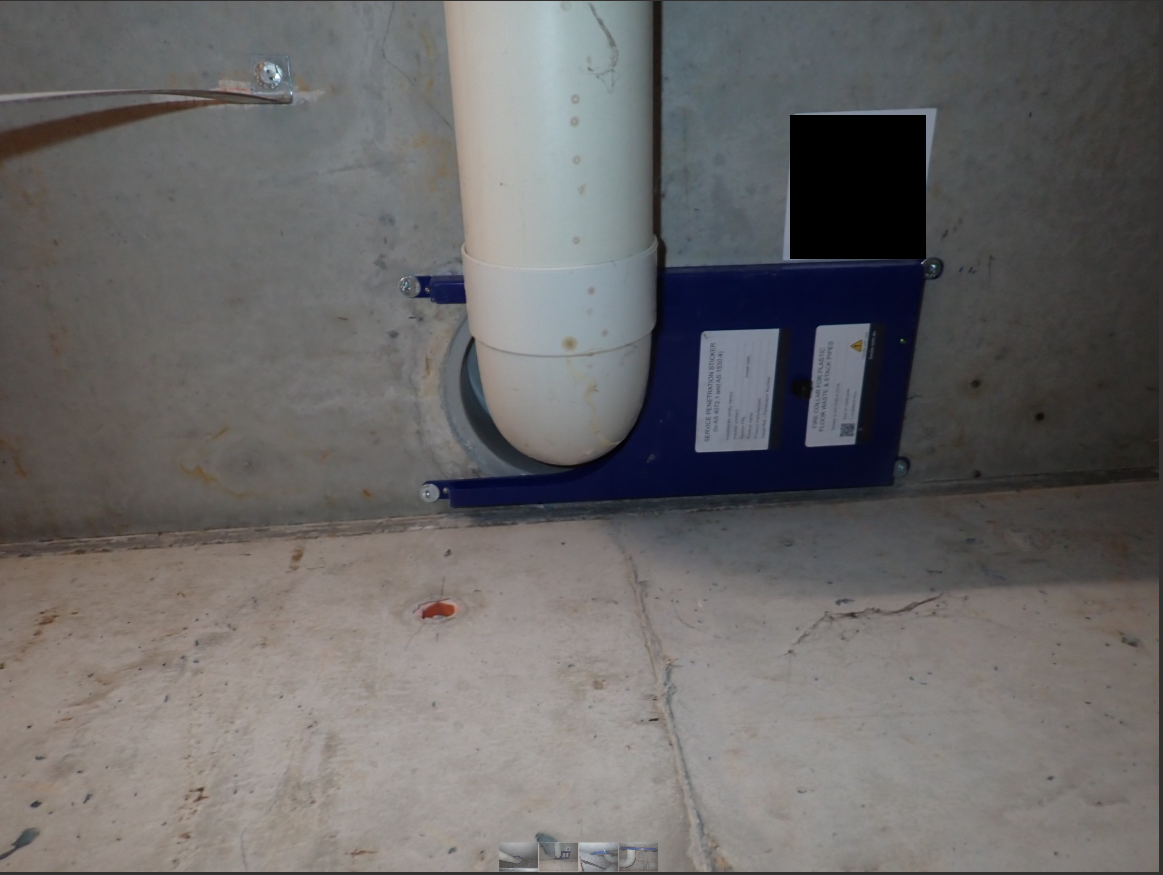

An elbow tight beneath the slab.

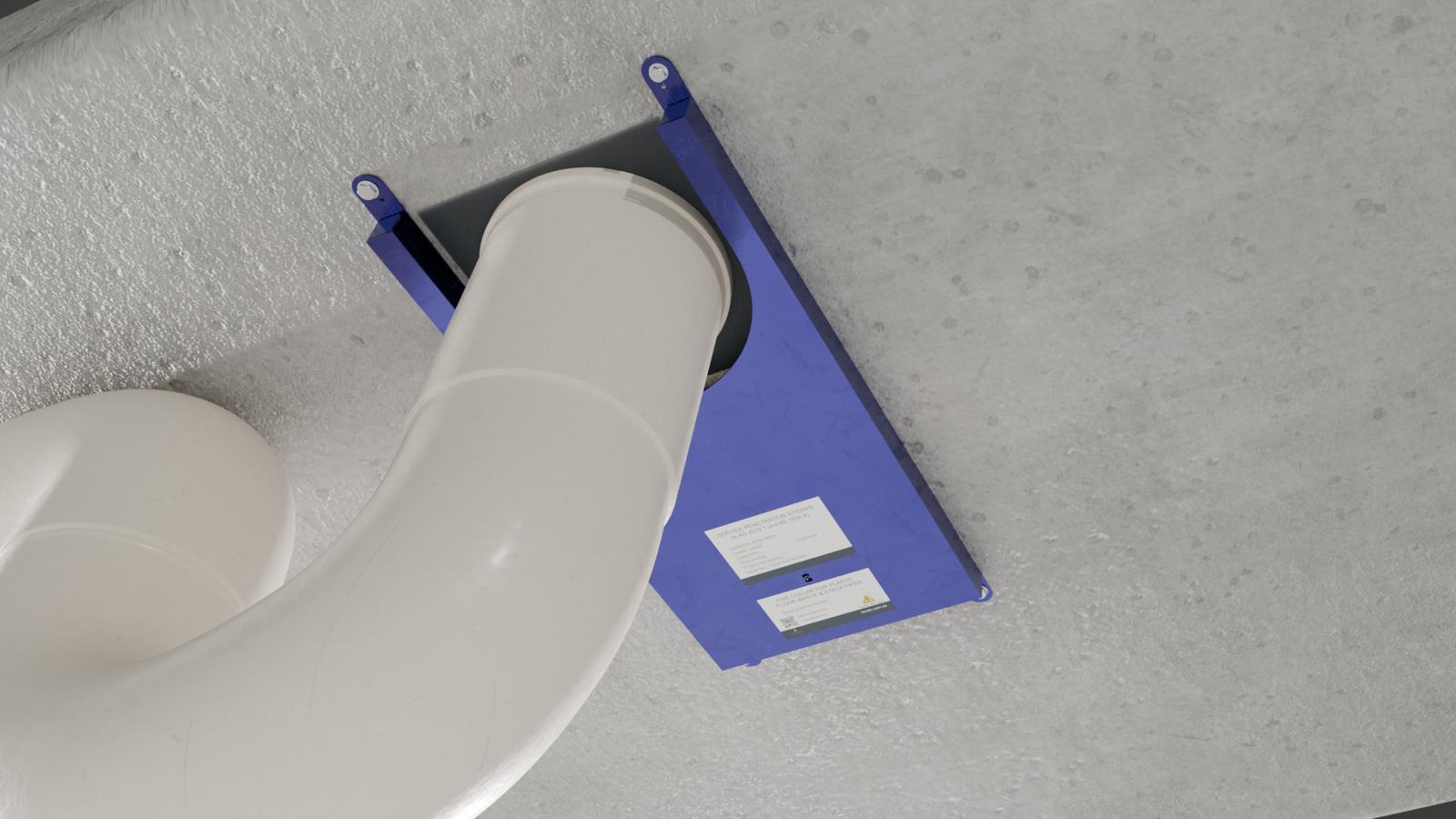

An open U-shaped collar.
See what a different approach makes possible.
The pipe stays in place. Fendix moves into position.
Explore tight-clearance installationsSimple on site
Installed in three clear steps.
Designed for straightforward installation using four 6 mm anchors.
Mark and drill
Mark all four fixing points and drill using a 6 mm masonry drill bit.
Fix with anchors
Install 6 mm anchors through all four points and confirm firm, even seating.
See the installation
A fast visual guide for installers.
Watch the complete process, or follow the three installation steps shown above.
View the 3 stepsWhere Fendix fits
One fire collar solution for standard and difficult penetrations.

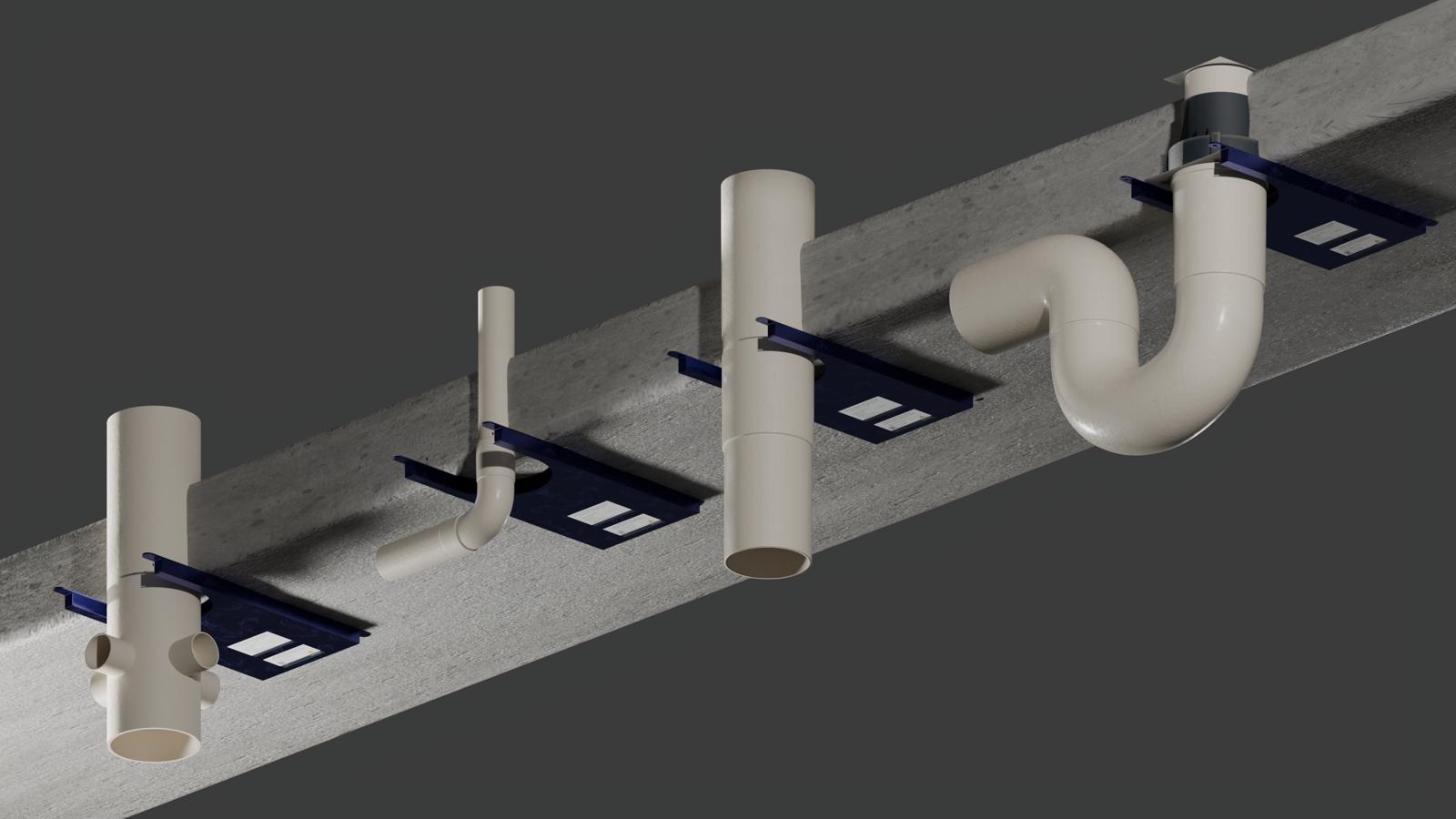

Stack pipes
For PVC-U stack configurations through concrete slabs.
Floor waste pipes
Works with floor-waste kits, shower grates and common fittings.
Existing cast-in collars
Retrofit over functional, non-functional or unknown existing cast-ins.
Standard core holes
Install directly over core-hole penetrations.
Tested evidence
Compliance information installers can verify.
Match the pipe material, configuration and slab thickness to the relevant report details.
Pipe material
PVC-U DWV
Stacks and floor wastes
| Pipe size | Configuration | Slab thickness | FRL |
|---|---|---|---|
| 50 mm | Stack / floor waste · core hole or cast-in · with or without fitting | 150 mm+ | −/180/180 |
| 65 mm | Stack / floor waste · core hole or cast-in · with or without fitting | 150 mm+ | −/180/180 |
| 80 mm | Stack / floor waste · core hole or cast-in · with or without fitting | 150 mm+ | −/180/180 |
| 100 mm | Stack / floor waste · core hole or cast-in · with or without fitting | 150 mm+ | −/180/180 |
| 100 mm | Stack / floor waste · core hole or cast-in · with or without fitting | 170 mm+ | −/240/240 |
Pipe material
HDPE
Stacks
| Pipe size | Configuration | Slab thickness | FRL |
|---|---|---|---|
| 56 mm | Stack pipe | 150 mm | −/240/240 |
Assessment highlightsFor PVC-U DWV configurations
- Existing cast-in collars may be functional, non-functional or of unknown function.
- Common sockets, elbows, S-bends, four-way risers and other fittings are covered subject to the report.
- Any shower grate or floor-waste kit may be used subject to the tested requirements.
- Pipes capped on the unexposed (top) side are permitted for supported configurations, subject to Section 8.2 and the report limitations.
